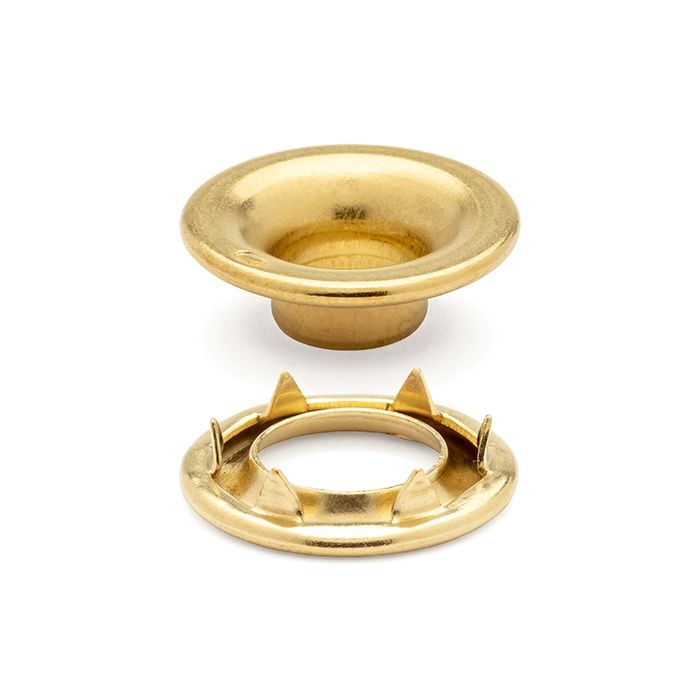

DOT® Rolled Rim Grommet and Spur Washer 20-007R050001XG Brass Finish #0 size 144 pack
$24.69
Description: #0 Brass Rolled Rim Grommet and Spur Washer
Item Number: 20-007R050001XG
Pack Size: 1 Gross
| Product Type | Grommets, Washers |
|---|---|
| Product Size | #0 |
| Finish | Brass |
| Height (in) (LUF) | 0.175 in |
| Height (mm) (LUF) | 4.445 mm |
| Pack Size | 1 Gross |
| Applications | Banners and Flags, Boat Covers, Ground Cover, Luggage, Privacy Curtains, Protective Gear, Seats, Signs and Media, Tarps, Tents and Awnings |
| Material | Brass |
| Military Specification Number (Mil Spec) | NASM16491, MS2030, Type III, Class 1 |
| Washer Inner Diameter (in) (ID) | 0.345 in |
| Washer Inner Diameter (mm) (ID) | 8.763 mm |
| Washer Outer Diameter (in) (OD) | 0.645 in |
| Washer Outer Diameter (mm) (OD) | 16.383 mm |
| Grommet Inner Diameter (in) (ID) | 0.270 in |
| Grommet Inner Diameter (mm) (ID) | 6.858 mm |
| Grommet Outer Diameter (in) (OD) | 0.670 in |
| Grommet Outer Diameter (mm) (OD) | 17.018 mm |
| Hole Size | 9/32 |
