Scovill’s DOT product line has provided durability and quality for more than 100 years.
Most DOT Fasteners are Made in the USA.
Many products conform to the US Military and Commercial Specifications.

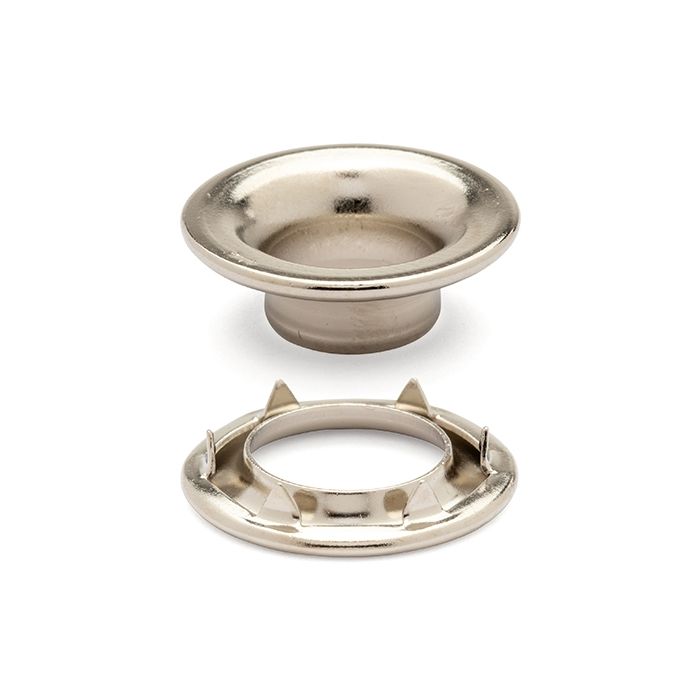

DOT® Rolled Rim Grommet and Spur Washer 20-007R151831XG Nickel Finish #1 size 144 pack
Description: #1 Nickel Rolled Rim Grommet and Spur Washer
Item Number: 20-007R151831XG
Pack Size: 1 Gross
|Height (in) (LUF)||0.210 in|
|Height (mm) (LUF)||5.334 mm|
|Pack Size||1 Gross|
|Applications||Banners and Flags, Boat Covers, Ground Cover, Luggage, Privacy Curtains, Protective Gear, Seats, Signs and Media, Tarps, Tents and Awnings|
|Military Specification Number (Mil Spec)||NASM16491, MS2030, Type III, Class 2|
|Washer Inner Diameter (in) (ID)||0.455 in|
|Washer Inner Diameter (mm) (ID)||11.557 mm|
|Washer Outer Diameter (in) (OD)||0.790 in|
|Washer Outer Diameter (mm) (OD)||20.066 mm|
|Grommet Inner Diameter (in) (ID)||0.380 in|
|Grommet Inner Diameter (mm) (ID)||9.652 mm|
|Grommet Outer Diameter (in) (OD)||0.790 in|
|Grommet Outer Diameter (mm) (OD)||20.066 mm|
