Scovill’s DOT product line has provided durability and quality for more than 100 years.
Most DOT Fasteners are Made in the USA.
Many products conform to the US Military and Commercial Specifications.

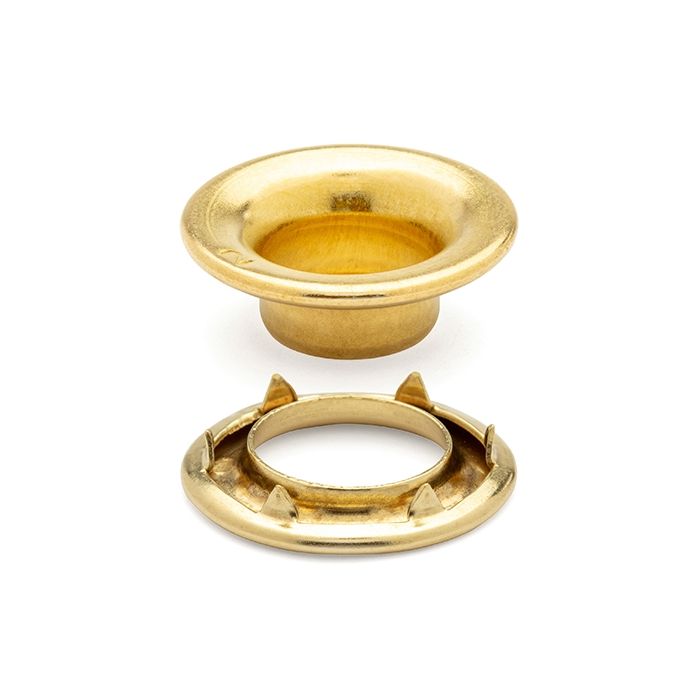

DOT® Rolled Rim Grommet and Spur Washer 20-007R250001XG Brass Finish #2 size 144 pack
Description: #2 Brass Rolled Rim Grommet and Spur Washer
Item Number: 20-007R250001XG
Pack Size: 1 Gross
|Height (in) (LUF)||0.245 in|
|Height (mm) (LUF)||6.223 mm|
|Pack Size||1 Gross|
|Applications||Banners and Flags, Boat Covers, Ground Cover, Luggage, Privacy Curtains, Protective Gear, Seats, Signs and Media, Tarps, Tents and Awnings|
|Military Specification Number (Mil Spec)||NASM16491, MS2030, Type III, Class 1|
|Washer Inner Diameter (in) (ID)||0.512 in|
|Washer Inner Diameter (mm) (ID)||13.005 mm|
|Washer Outer Diameter (in) (OD)||0.890 in|
|Washer Outer Diameter (mm) (OD)||22.606 mm|
|Grommet Inner Diameter (in) (ID)||0.425 in|
|Grommet Inner Diameter (mm) (ID)||10.795 mm|
|Grommet Outer Diameter (in) (OD)||0.890 in|
|Grommet Outer Diameter (mm) (OD)||22.606 mm|
