Scovill’s DOT product line has provided durability and quality for more than 100 years.
Most DOT Fasteners are Made in the USA.
Many products conform to the US Military and Commercial Specifications.
DOT® Rolled Rim Grommet and Spur Washer 20-007R350001XG Brass Finish #3 size 144 pack
$39.72

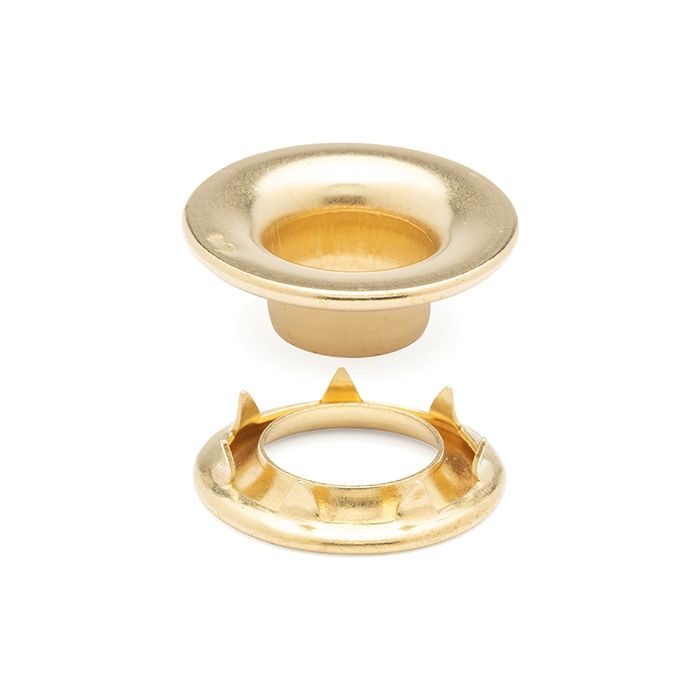

Description: #3 Brass Rolled Rim Grommet and Spur Washer
Item Number: 20-007R350001XG
Pack Size: 1 Gross
Product Type | Grommets, Washers |
---|---|
Product Size | #3 |
Finish | Brass |
Height (in) (LUF) | 0.255 in |
Height (mm) (LUF) | 6.477 mm |
Pack Size | 1 Gross |
Applications | Banners and Flags, Boat Covers, Ground Cover, Luggage, Privacy Curtains, Protective Gear, Seats, Signs and Media, Tarps, Tents and Awnings |
Material | Brass |
Military Specification Number (Mil Spec) | NASM16491, MS2030, Type III, Class 1 |
Washer Inner Diameter (in) (ID) | 0.537 in |
Washer Inner Diameter (mm) (ID) | 13.640 mm |
Washer Outer Diameter (in) (OD) | 0.970 in |
Washer Outer Diameter (mm) (OD) | 24.638 mm |
Grommet Inner Diameter (in) (ID) | 0.430 in |
Grommet Inner Diameter (mm) (ID) | 10.922 mm |
Grommet Outer Diameter (in) (OD) | 0.970 in |
Grommet Outer Diameter (mm) (OD) | 24.638 mm |
Hole Size | 15/32 |
