DOT® Rolled Rim Grommet and Spur Washer 20-007R450001XG Brass Finish #4 size 144 pack

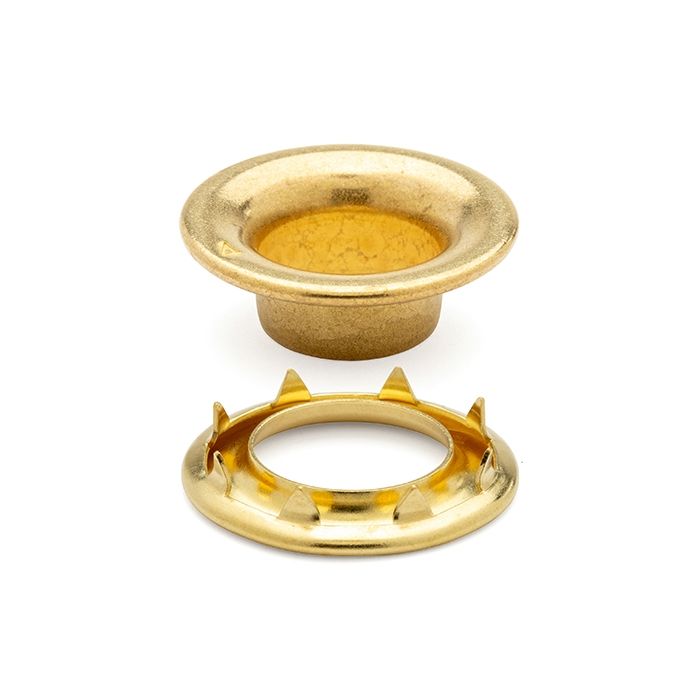

Description: #4 Brass Rolled Rim Grommet and Spur Washer
Item Number: 20-007R450001XG
Pack Size: 1 Gross
More Information
Product TypeGrommets, Washers
Product Size#4
Height (in) (LUF)0.325 in
Height (mm) (LUF)8.255 mm
Pack Size1 Gross
ApplicationsBanners and Flags, Boat Covers, Ground Cover, Luggage, Privacy Curtains, Protective Gear, Seats, Signs and Media, Tarps, Tents and Awnings
Military Specification Number (Mil Spec)NASM16491, MS2030, Type III, Class 1
Washer Inner Diameter (in) (ID)0.645 in
Washer Inner Diameter (mm) (ID)16.383 mm
Washer Outer Diameter (in) (OD)1.120 in
Washer Outer Diameter (mm) (OD)28.448 mm
Grommet Inner Diameter (in) (ID)0.560 in
Grommet Inner Diameter (mm) (ID)14.224 mm
Grommet Outer Diameter (in) (OD)1.120 in
Grommet Outer Diameter (mm) (OD)28.448 mm
Hole Size9/16
