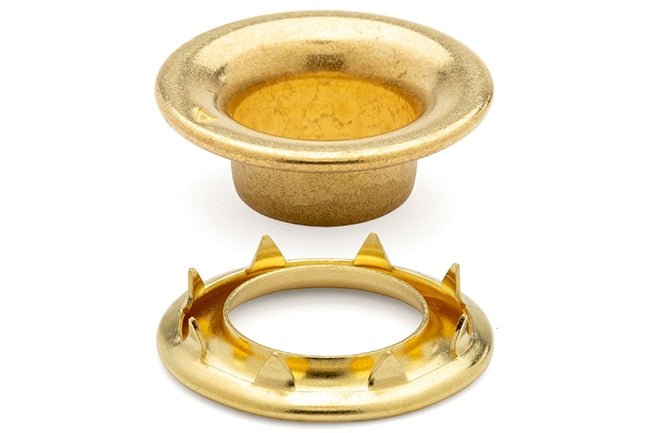

DOT® Rolled Rim Grommet and Spur Washer 20-007R450001XG Brass Finish #4 size 144 pack
Questions? Contact us for more info.
Need to return a item? Contact us within 45 days of shipment.
Morito Scovill Americas' DOT product line has provided durability and quality for more than 100 years.
DOT products conform to stringent US Military and Commercial specifications and are Berry Compliant.
Need more than 10,000 pieces? Contact us for availability.
-
Product TypeGrommets, Washers
-
ApplicationsBanners and Flags, Boat Covers, Ground Cover, Luggage, Privacy Curtains, Protective Gear, Seats, Signs and Media, Tarps, Tents and Awnings
-
FinishBrass
-
Product FinishBrass
-
MaterialBrass
-
Military Specification Number (Mil Spec)
-
Pack Size1 Gross
-
Product Size#4
-

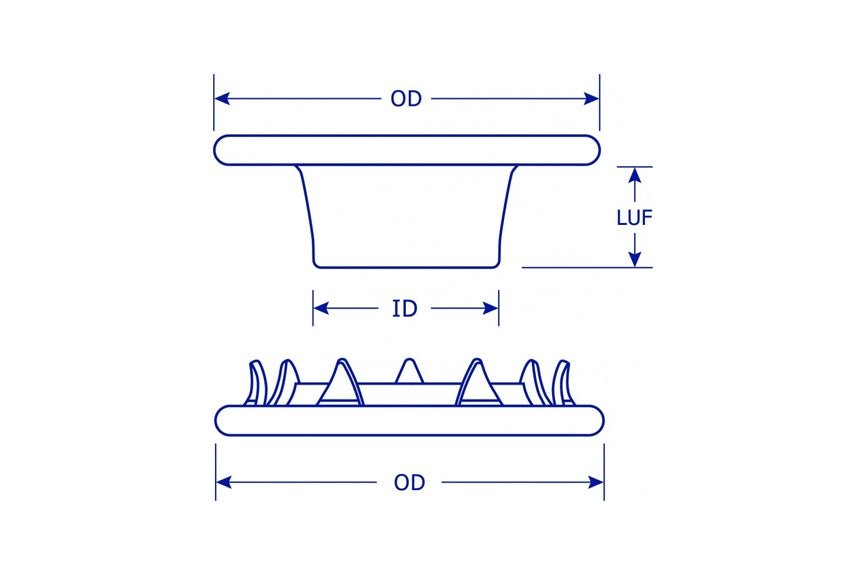

Washer Inner Diameter (in) (ID)0.645 in
-
Washer Inner Diameter (mm) (ID)16.383 mm
-
Washer Outer Diameter (in) (OD)1.120 in
-
Washer Outer Diameter (mm) (OD)28.448 mm
-
Grommet Inner Diameter (in) (ID)0.560 in
-
Grommet Inner Diameter (mm) (ID)14.224 mm
-
Grommet Outer Diameter (in) (OD)1.120 in
-
Grommet Outer Diameter (mm) (OD)28.448 mm
-
Height (in) (LUF)0.325 in
-
Height (mm) (LUF)8.255 mm
-
Hole Size9/16 in
